The Reference's

The heavyweights, the beasts, your dream speakers !



The TLS80





The TLS80 is a 4 way large loudspeaker.

Dimensions
Free Standing with Plinth; 38 1/2" x 16" x 18" wide

Drive Units
Bass unit 11 3/4" x 8 1/4" flat polystyrene diaphragm loaded by transmission line
mid range unit 6" plastic cone containing in separate line
tweeter 1 3/4 " diaphragm
3/4" chemical dome super-tweeter

Frequency Range
20 Hz to beyong audibility

Click here for complete information.


The Studio Monitor




The Studio Monitor

Dimensions
880 x 350 x 390 mm (34 5/8" x 13 3/4" x 15 3/8") wide
Overall height on stand 1000 mm (39 3/8")

Drive Units
200 mm (8") Bass unit    - engineered polymer cone
100 mm (4") Mid-range     engineered polymer cone
20 mm    (3/4") H.F. Tweeter     chemcial dome; ferro-fluid damped

Frequency Range
23 Hz to 40 kHz

Click here for complete information.


The Professional Monitor




The Professional Monitor

Dimensions
950 x 400 x 460 mm (37 3/8" x 15 3/4" x 181/8") wide
Overall height on stand 1060 mm (413/4")

Drive Units
130 mm (5") Mid-range    engineered polymer cone
45 mm (1,"/4") Tweeter    high gauss: ferro-fluid damped
20 mm 3/4") H.F. Tweeter    chemical dome: ferro-fluid damped

Frequency Range
19 Hz to 40 kHz

Click here for complete information.

The RSPM (Reference Standard Professional Monitor)





The Reference Standard Professional Monitor

Dimensions
41" x 16 3/4" x 19" wide
104 x 43 x 50 cm

Drive Units
Bass unit 11 3/4" x 8 1/4" flat polystyrene diaphragm loaded by transmission line
mid range unit 6" plastic cone containing in separate line
tweeter 1 3/4 " diaphragm
3/4" chemical dome super-tweeter

Frequency Range
17 Hz to beyong audibility

Click here for complete information.

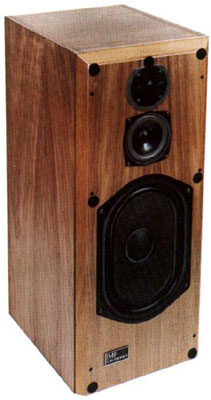

The HPCM High Performance Control Monitor




The HPCM is a large 3 way speaker, non transmission line !

Dimensions
670 x 370 x 290 mm (26.8" x 14.8" x 11.6") wide

Drive Units
300 x 210 mm (11 3/4" x 8 1/4") Bass Unit - Styrene/fibreglass cone 100 mm (4") Mid-range - Engineered polymer cone - Ferro-fluid damped 20 mm Tweeter - Chemical dome ferro-fluid damped

Frequency Range
37 Hz to beyond audibility

Click here for complete information.

The SACM (Special Application Control Monitor)




The sacred graal.

Dimensions
55 in high, 18 wide and 16 deep

Drive Units
4

Frequency Range
7Hz to 40kHz


Click here for complete information.
